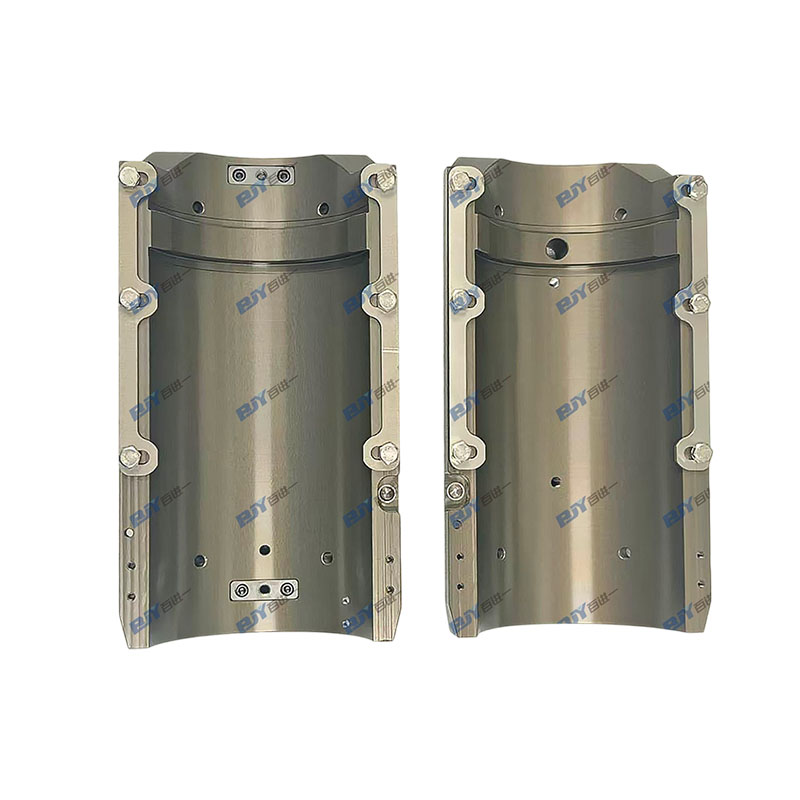

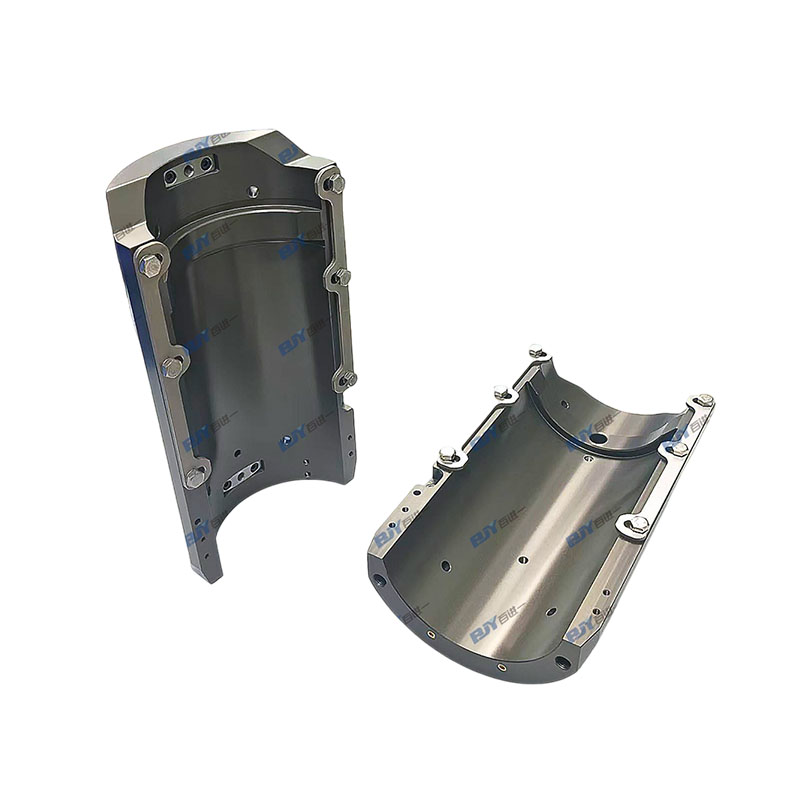

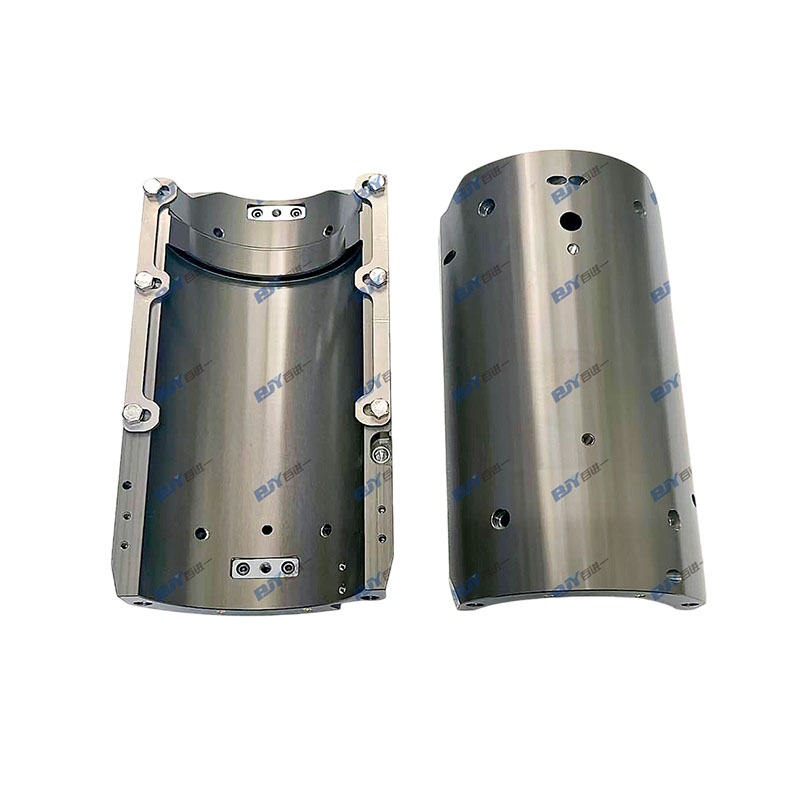

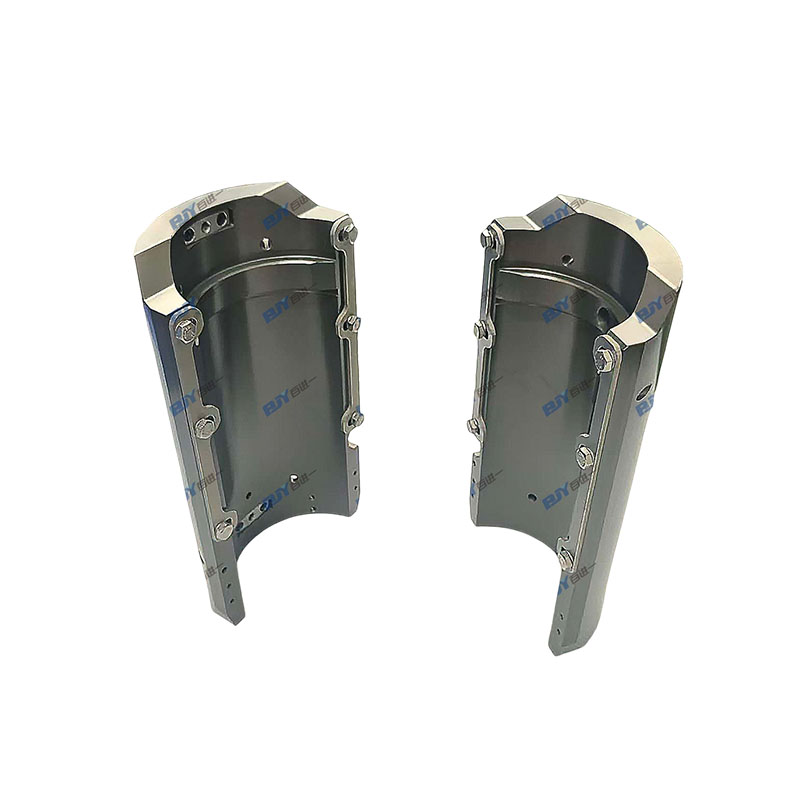

196x343 Mold Shell for KHS

When we talk about the 196x343 mould shell, we aren't talking about cooling or bottle shapes; we are talking about mechanical protection. The shell is the exoskeleton that takes the physical punishment of the blowing carousel so your moulds don't have to. At BJY, our 196x343 shells are engineered to act as a buffer. In the high-frequency world of PET production, the friction between the mould halves during each opening and closing cycle can lead to rapid degradation. A perfectly rigid, solid-rod aluminum shell holds the mould in place with zero play, effectively absorbing the energy of the locking action and reducing the mechanical loss on the mould surfaces.

Consult

Features
Technical Indicators

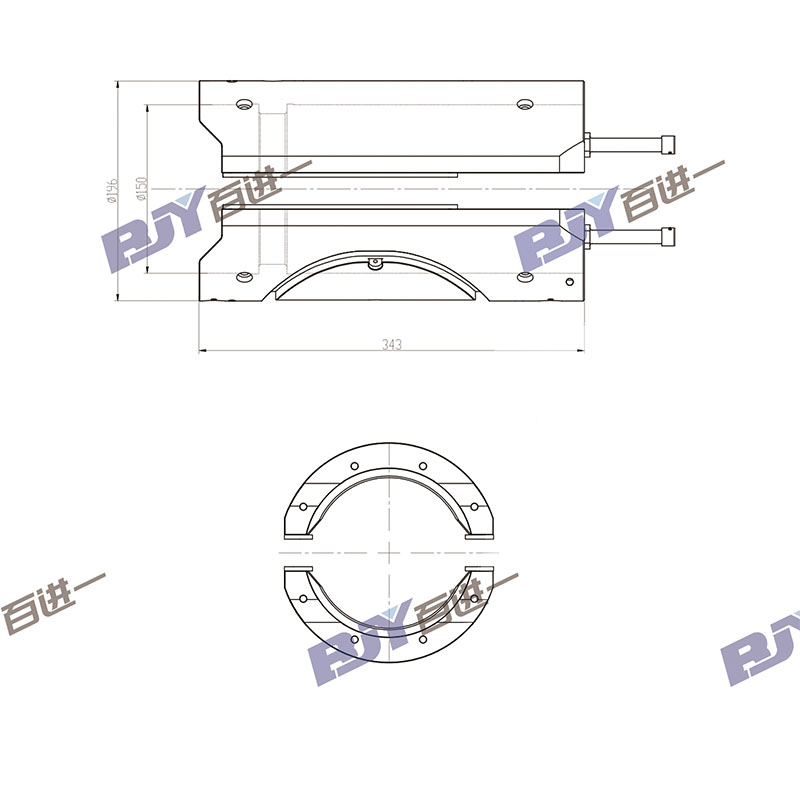

Overall Dimension

The Role of the Shell in Tooling Longevity
When we talk about the 196x343 mould shell, we aren't talking about cooling or bottle shapes; we are talking about mechanical protection. The shell is the exoskeleton that takes the physical punishment of the blowing carousel so your moulds don't have to. At BJY, our 196x343 shells are engineered to act as a buffer. In the high-frequency world of PET production, the friction between the mould halves during each opening and closing cycle can lead to rapid degradation. A perfectly rigid, solid-rod aluminum shell holds the mould in place with zero play, effectively absorbing the energy of the locking action and reducing the mechanical loss on the mould surfaces.
Many aftermarket suppliers use casted aluminum blocks, which often harbor stress points that lead to dimensional drift over time. BJY has rejected this approach in favor of 100% solid rods. The resulting 196x343 shell is much more dimensionally stable under pressure. For the maintenance technician, this means that the station remains aligned for longer periods, reducing the time spent on manual adjustments. Our focus is purely on the mechanical fit and the durability of the carrier surfaces. Since 2011, we have built a reputation for parts that just work.
Durability in the Face of Constant Production
Production hall environments are harsh, with high humidity and constant mechanical vibration. Our 196x343 shells feature a deep, hard-surface treatment that is specifically designed to resist the grinding force of the KHS locking mechanism. This ensures that the edges of the shell don't wear down, maintaining the critical ø196mm and H343mm specs even after millions of cycles.
• Material Density: Solid-milled aluminum eliminates the voids found in casted components.
• Mechanical Buffer: Designed to absorb impact and reduce wear on expensive blow moulds.
• Plug & Play: Exactly machined water and pin ports to KHS OEM standards.
BJY provides the engineering precision that keeps your stations running smoothly season after season.
