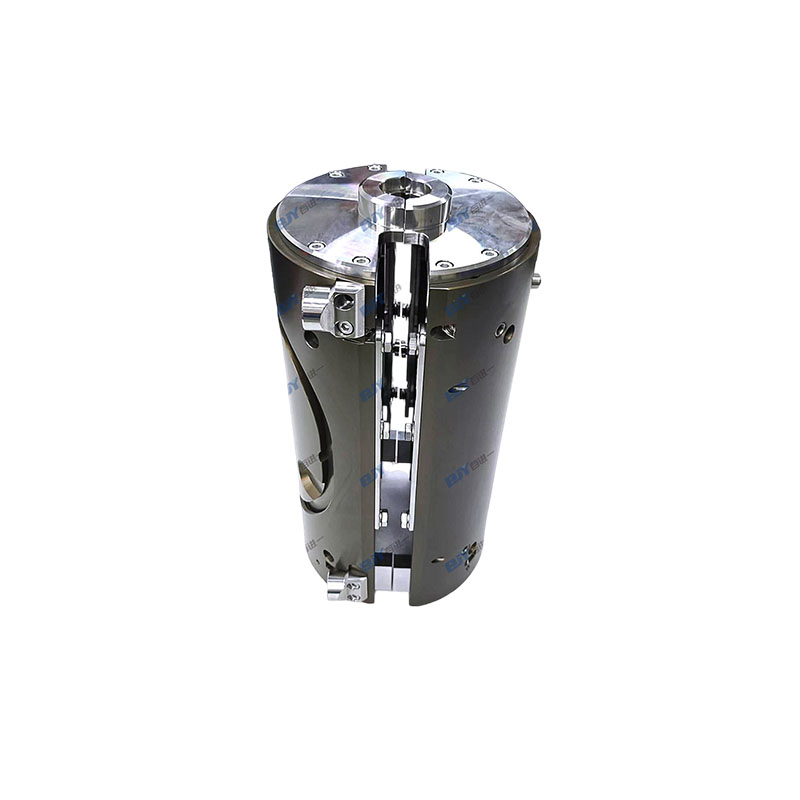

Blow Molding Mold Shell (KHS Compatible)

Blow Molding Mold Shell (KHS Compatible)

LC260315

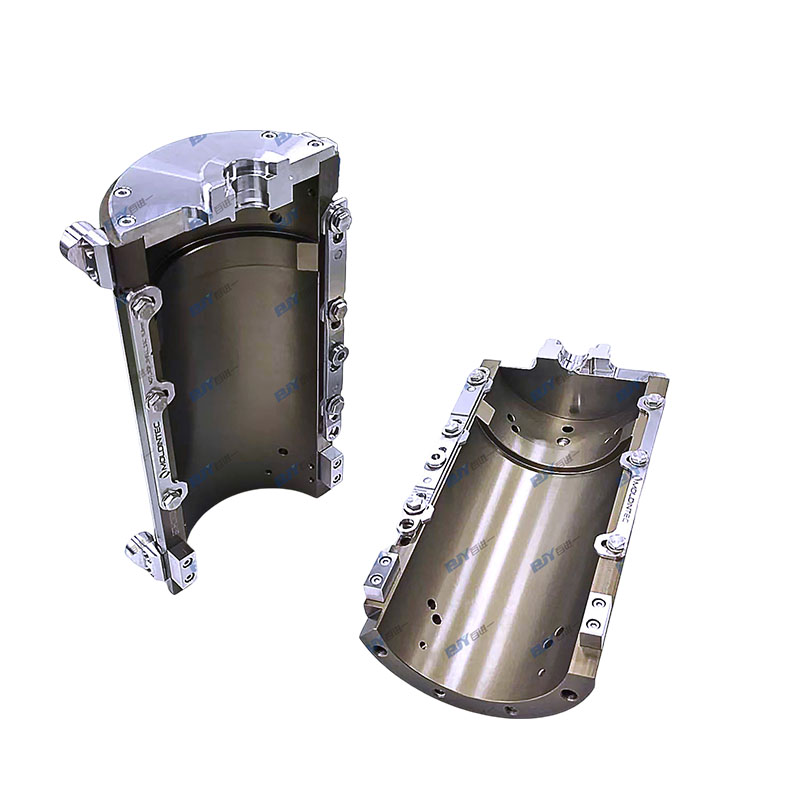

The mold shell is a key structural component in high-speed blow molding systems. Installed inside the mold carrier, it provides essential support, protection, and stabilization for the mold.
Under high-speed production conditions, the mold shell not only performs mechanical fixing functions but also contributes to thermal management and operational stability. It plays a vital role in ensuring consistent bottle forming accuracy and continuous machine operation.

Consult

Features
Technical Indicators
Overall Dimension

1. Enhanced Mold Protection & Longer Service Life
Made from high-strength aluminum alloy, the mold shell offers excellent impact resistance and wear resistance. It effectively minimizes damage caused by friction, vibration, and accidental collisions during high-speed mold opening and closing, reducing maintenance costs and extending mold lifespan.

2. High-Precision Fit for Stable Operation
With precision machining and strict tolerance control, the mold shell ensures tight and accurate assembly with the mold and mold carrier. This prevents displacement or vibration during operation, improving consistency in bottle dimensions and overall product quality.

3. Optimized Thermal Management for Higher Efficiency
Designed with heat dissipation considerations, the mold shell facilitates rapid heat transfer and temperature control. This improves cooling efficiency, shortens cycle time, and reduces defects caused by uneven temperature distribution.

4. Modular Design for Easy Maintenance
The standardized interface allows for quick installation and removal. This significantly reduces downtime during mold replacement and maintenance, improving overall production efficiency.

5. Single-Side Boosting Structure for Process Compatibility

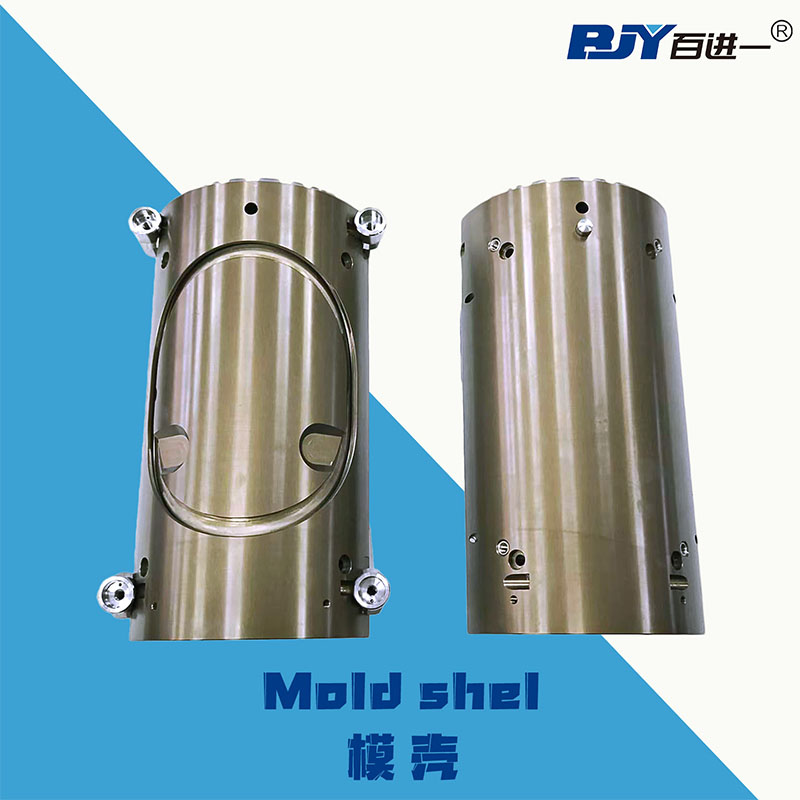

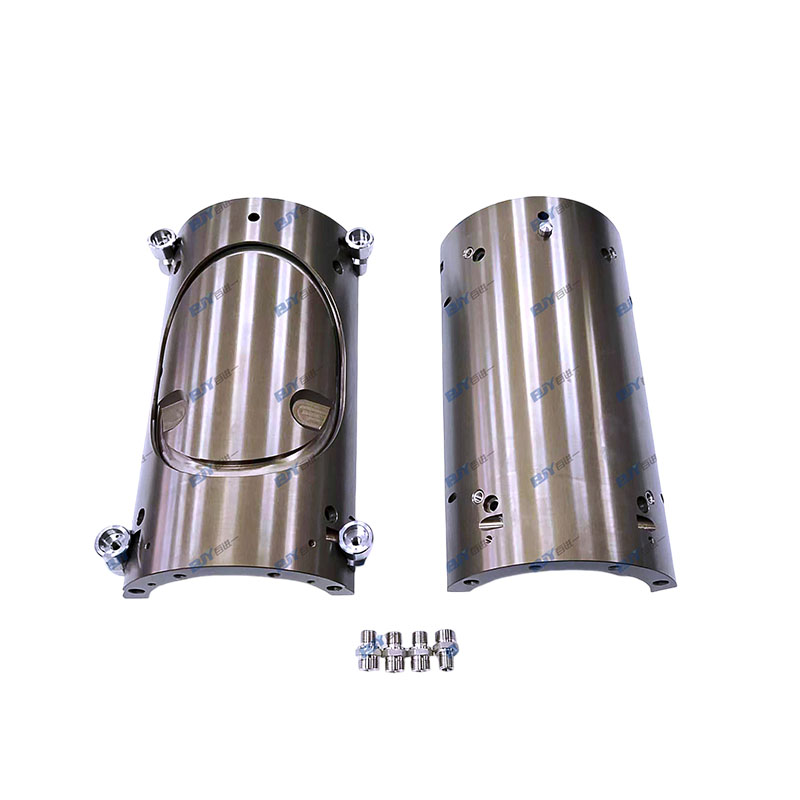

The design, featuring one side with pressure enhancement and one without, is optimized for KHS equipment requirements. It ensures better adaptability to actual production conditions and enhances system stability.

6. Improved Operational Safety
The mold shell provides an additional protective barrier, reducing the risk of accidental contact with hot or moving parts, thereby enhancing workplace safety.

Why Choose Us
1. Expertise in PET Mold System Solutions
Foshan Baijinyi Precise Technology Co., Ltd specializes in PET mold systems, including preform molds, blow molds, and related components, backed by extensive industry experience and technical expertise.

2. High-Precision Manufacturing Capability
We utilize advanced machining equipment and strict quality control processes to ensure consistent precision, surface quality, and assembly performance for every mold shell.

3. Extensive Equipment Compatibility Experience
Our products are widely compatible with leading international brands such as KHS. We provide tailored solutions based on customers’ specific equipment requirements, rather than just standard products.

4. Reliable Delivery & Fast Response
With a mature production system and efficient project management, we ensure stable delivery times while maintaining high product quality and responsive service.

5. Customization Capability
We offer customized design and optimization services based on different bottle types, production capacities, and machine structures, helping customers achieve higher efficiency and lower energy consumption.

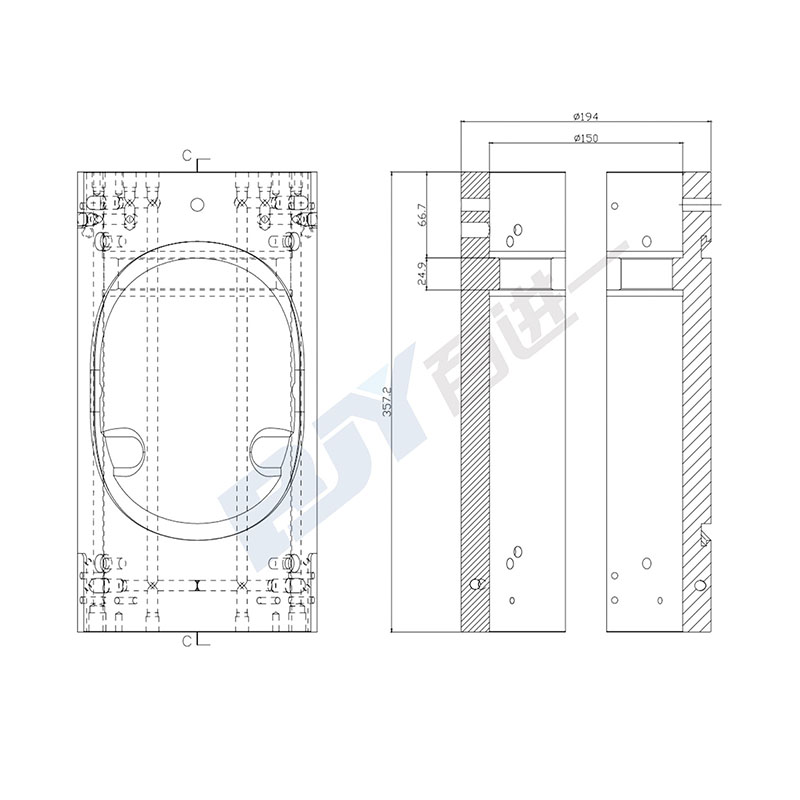

Product Name: Blow Molding Machine Mold Shell Material: A6061 High-Strength Aluminum Alloy Dimensions: Ø194 × 357.2 mm Compatible Equipment: KHS Blow Molding Machine Structural Feature: Single-side boosting design (one side with pressure enhancement, one side without) Installation Position: Inner layer of the mold carrier (enclosing the mold)
