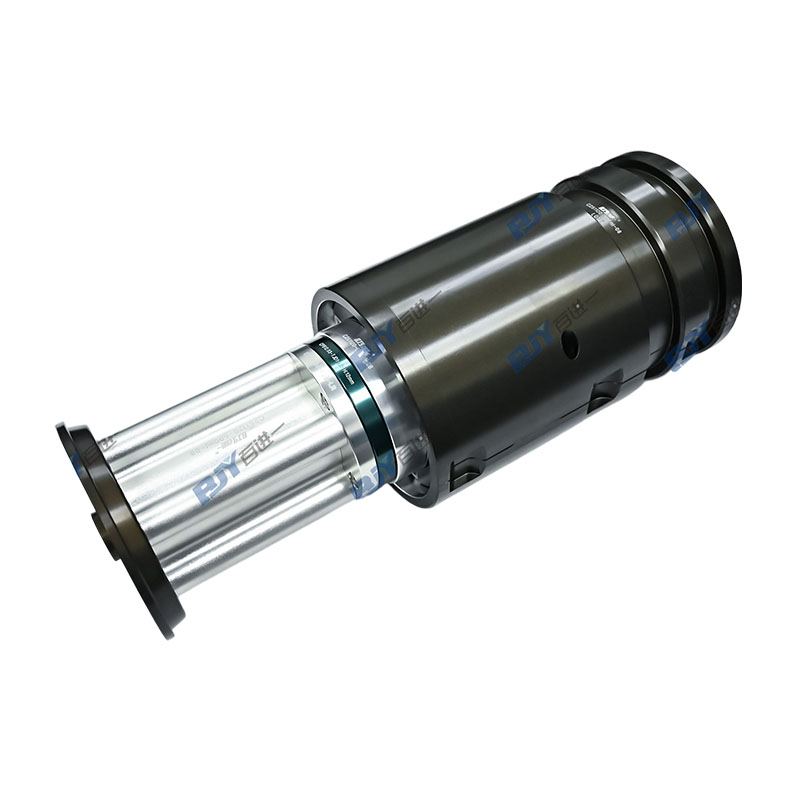

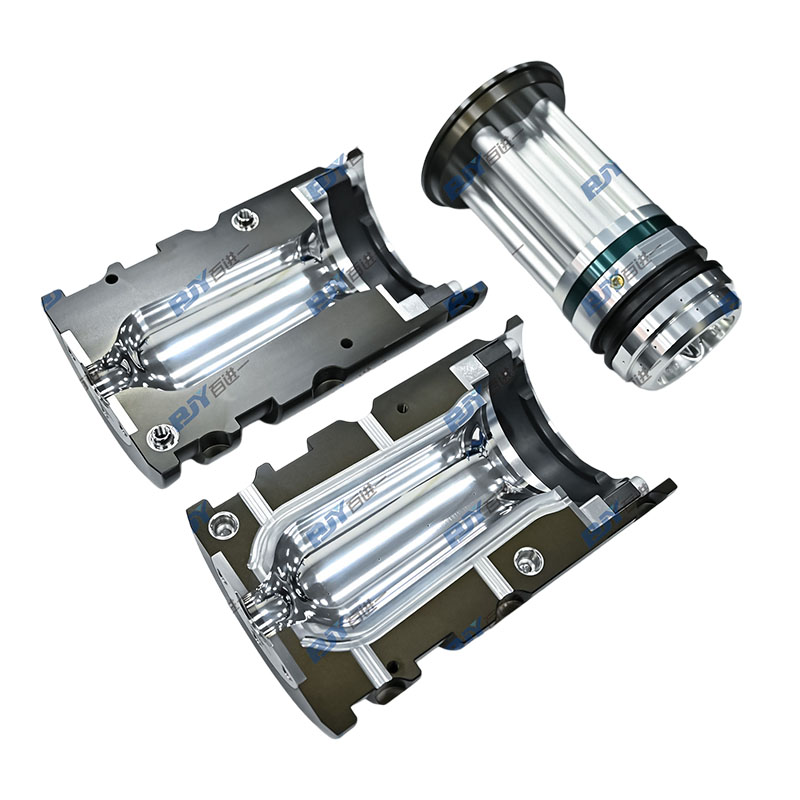

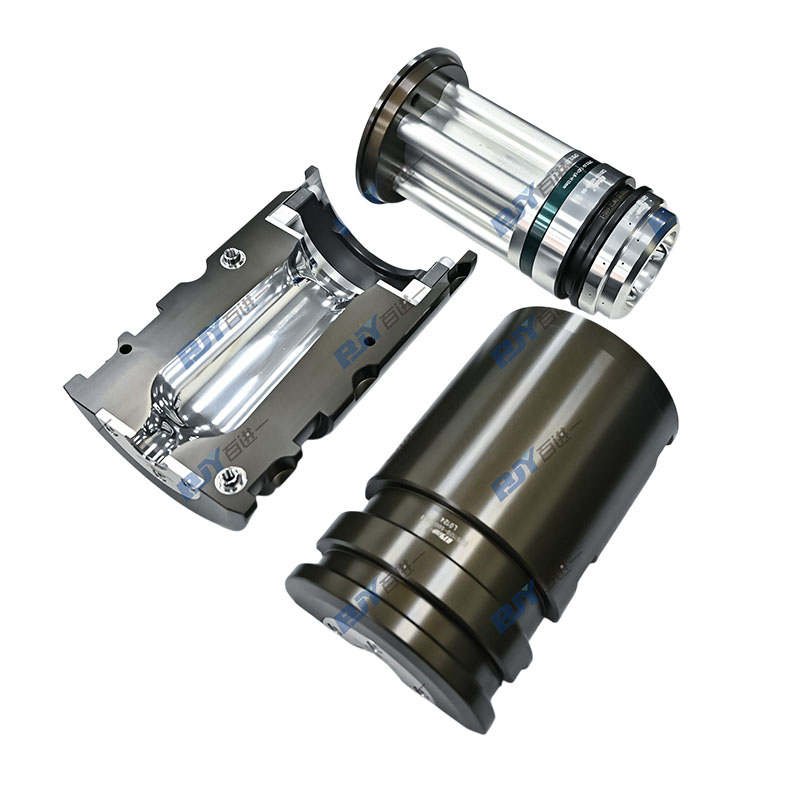

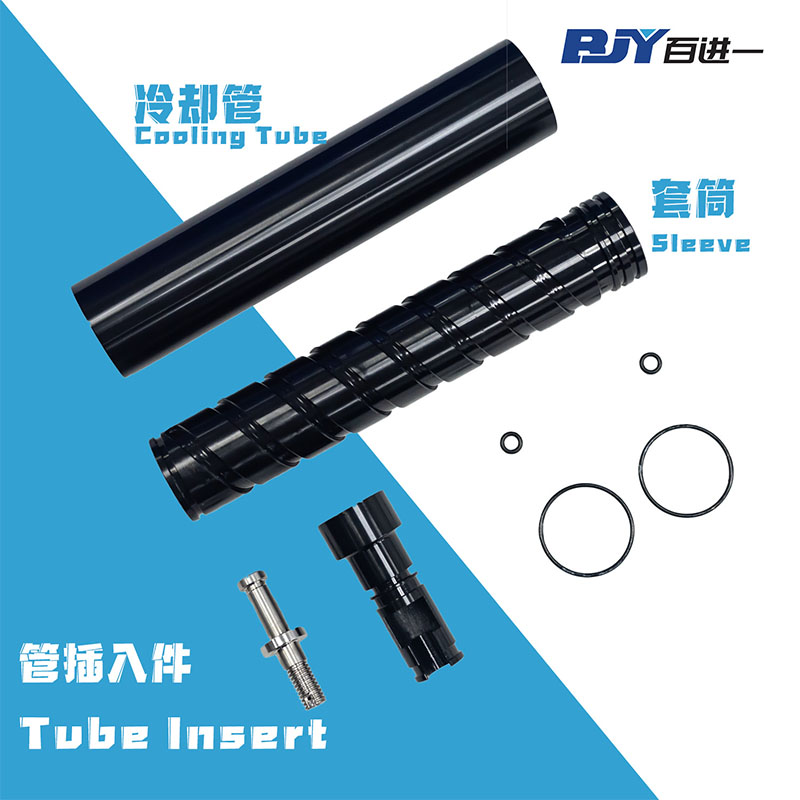

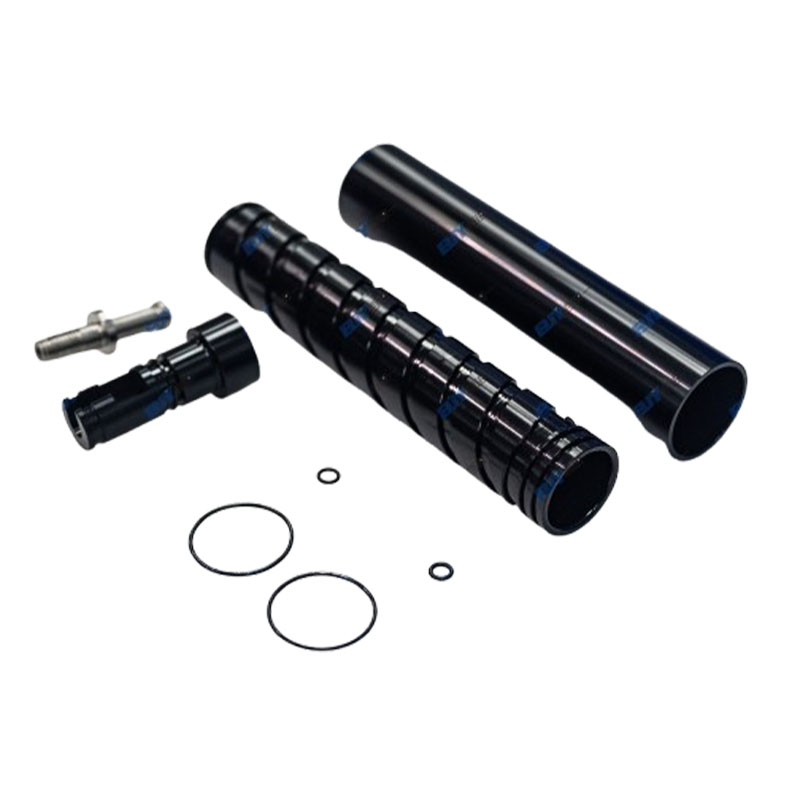

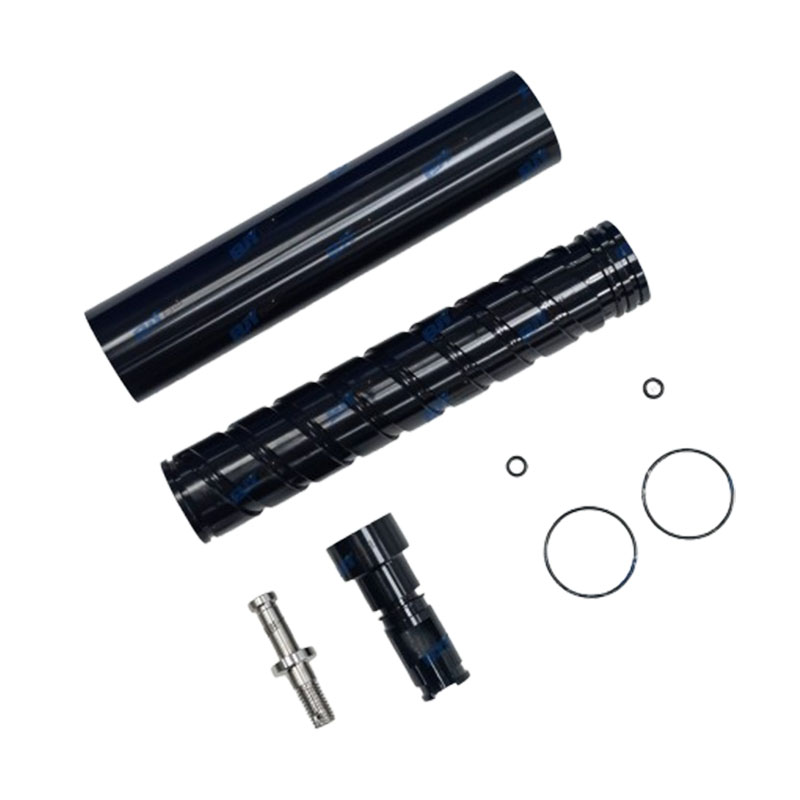

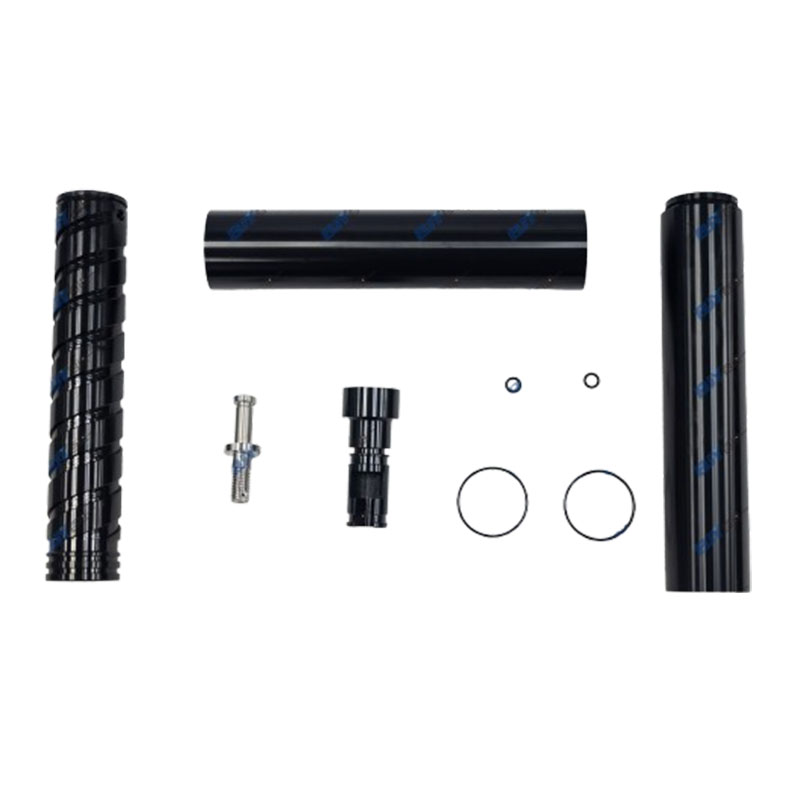

Cooling Tube / Sleeve / Tube Insert

Z250808
The Take-Out Tube is an important component in the PET preform injection production line. It is usually installed on the take-out robot plate of the injection molding machine. After the PET preform is injection molded, the robot uses the take-out tube to remove the preform from the mold. At the same time, the internal cooling water channel helps cool the preform quickly, which improves production efficiency and ensures the quality of the preform.

Consult

Features
Technical Indicators
Overall Dimension

Precise Positioning
Helps guide the robot to accurately align with the preform in the mold.
Adaptable for Different Preforms
Can be adjusted or replaced to suit different preform sizes and specifications.
Stable Removal
Works with the robot gripper to ensure smooth and stable preform handling.
Rapid Cooling
Internal cooling channels help cool the preform quickly after removal.
Applicable Neck Finish: 1881 Applicable Weight: 56.95 g Compatible Equipment: Suitable for HUSKY brand PET preform injection molding machines Installation Position: Installed on the take-out robot plate of the injection molding machine Cooling Structure: Internal cooling water channel for rapid cooling of PET preforms
